- (4 ohms) 2x100 Watts Peak/2x50 W RMS @ <0.08% THD
- (2 ohms) 2x150 Watts Peak/2x75 W RMS @ <0.1% THD
- (4 ohms) 300 Watts Peak/Bridged 150 W RMS @ <0.1% THD
- 2 ohm stable operation for maximum efficiency
- High and low level inputs/Input level control
- Continuously variable high and low pass crossovers
- Bass Boost, 0 to +12dB, centered at 45Hz
- High current MOSFET outputs
- Gold plated inputs/outputs and screw terminal connections
- Fully protected for high temperature high/low battery voltage, speaker short circuit, and D.C. offset
- High performance input processor for maximum flexibility in amplifier configuration
- Optically isolated control system provides an idealsingle point ground return path
- MOSFET driven high frequency pulse width modulated (P.W.M.) D.C. to D.C. converter
These have computer tags with description of failure. These also will be sold AS IS...and priced as follows...
| KA 2200 |
$ 5.00 each |
|
|
10 for $45.00 |

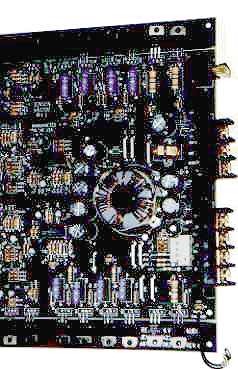

These boards also need a heat sink and case....All components
are on the board
|
