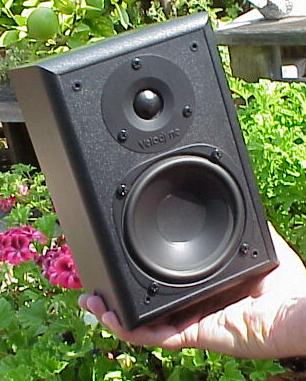

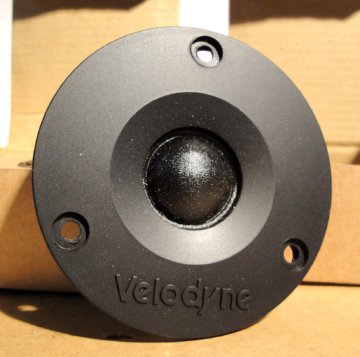

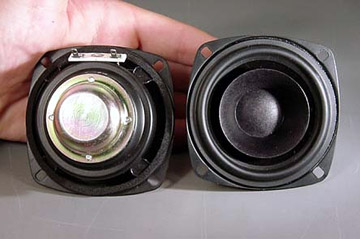

Velodyne 3/4" cloth dome tweeter from the Classic Home Theater (CHT)System $3.95 ea.

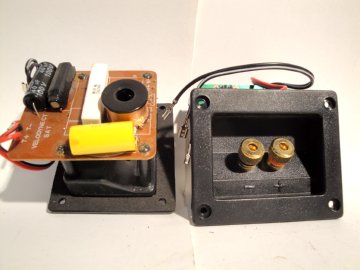

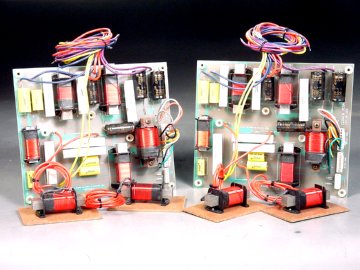

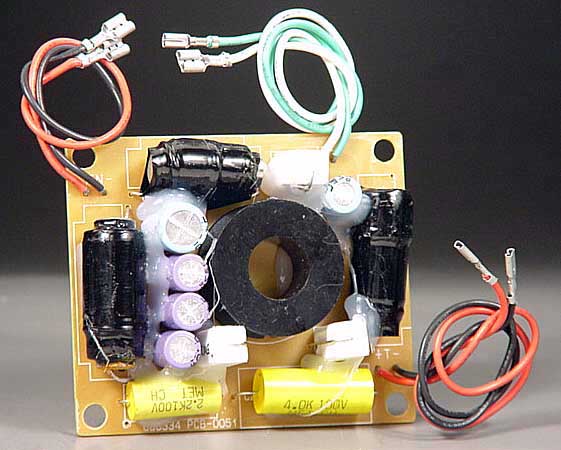

Crossover for the Velodyne Classic Home Theater MTM. $19.95 a pair.

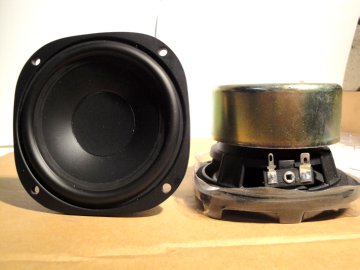

VELODYNE -- 80-CTHT1 -- 4 1/2" x 4 1/2" PAIR 8ohms --- $18.95

These midbass units were used in the Velodyne Classic Home Theatre (CHT) system.



We have sold out of the 4 ohm woofer. The 8 ohm version is designed for an MTM speaker that can be used either as a center channel when it is laying on it's side or as book shelf speaker when placed in classic D'Applito configuration. We have a version of the crossover (listed above)for that application.



Here is a link to a review of this system.

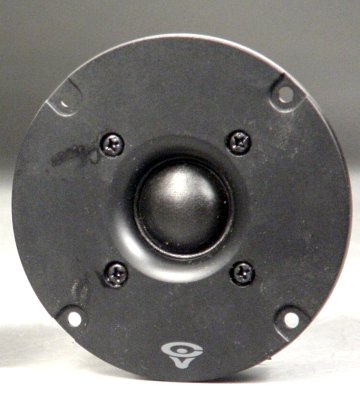

CERWIN VEGA 1 1/8" Soft Dome Tweeter
Model # 2570TRL
Part Number LSETH2130
4" X 5 1/4" Mounting plate
6 OHM
Price 14.95 Pair

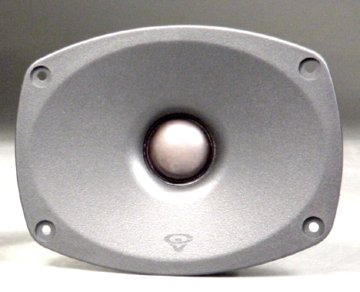

CERWIN VEGA 3 7/8" Soft Dome Tweeter
Model # AT 2570B
Part Number LSETH2100
4 OHM
Price $19.95 Pair

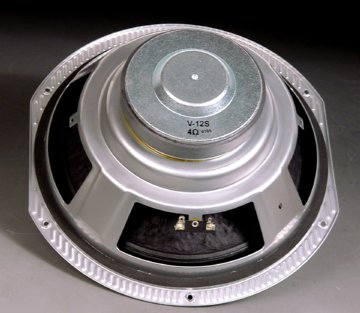

This is the 12 inch subwoofer from the Cerwin Vega V-12S subwoofer system. It is a 4 Ohm 12" woofer. It is designed for a 2.4 cubic ft ported enclosure. We recommend a round port 3" diameter x 1.75" long. The Cerwin Vega Amp that powered the origional system was rated at 100 watts RMS. We recommend the Apex Jr MS 8A plate amp to go along with this woofer but our more powerful amps will also work. We are selling these for $22.00 each.

Here is a link to the origional users manual. Here are a couple of reviews of the system.

Re 3.51 [Ohms]
Fs 26.92 [Hz]
Zm 31.78 [Ohms]
BL 0.00 [N/A]
Qms 3.354
Qes 0.416
Qts 0.370
Vas 0.000 [liters]
L10k 1.61 [mH]
n0 0.00 [%]
dBSPL 0.00 [1W/1m]
Ms 0.00 [grams]
Cms 0.00 [mm/N]

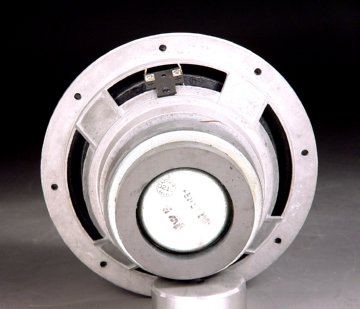

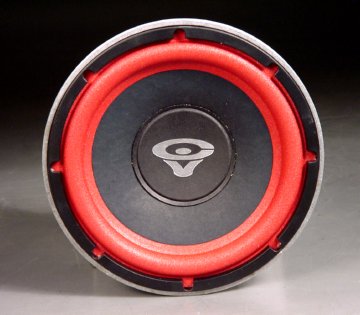

Cerwin Vega SL-28 Woofer $22.00 ea

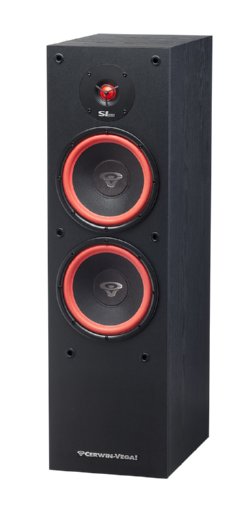

This is a 4 Ohm 8" Aluminum Cast Frame Speaker that was used by CV in the SL-28 tower speaker. It is designed for a ported enclosue of .92 cubic feet. The SL-28 used 2 of these drivers in a TMM configeration in a 1.85 cubic foot enclosure. We recommend a port size of 3" diameter x 8" length for a single driver and 3" x 3" in a cabinet with 2 drivers. We recommend a 100 - 150 watt amp for this driver. Consider the Apex Jr C-6 amp.Cerwin Vega rated this driver to go down to 35hz so this would make a great sub!

D 0.0 [mm]
Re 3.14 [Ohms]
Fs 44.41 [Hz]
Zm 21.12 [Ohms]
BL 0.00 [N/A]
Qms 2.486
Qes 0.434
Qts 0.369
Vas 0.000 [liters]
L10k 0.30 [mH]
n0 0.00 [%]
dBSPL 0.00 [1W/1m]
Ms 0.00 [grams]
Cms 0.00 [mm/N]

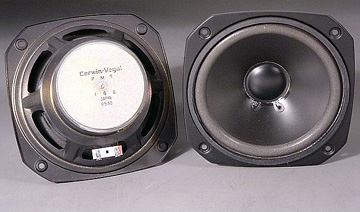

Cerwin Vega 8 Ohm 5 1/4" LSCTJ2090 Speaker $17.95 Pair

D 0.0 [mm]
Re 6.36 [Ohms]
Fs 59.22 [Hz]
Zm 37.26 [Ohms]
BL 0.00 [N/A]
Qms 3.174
Qes 0.653
Qts 0.542
Vas 0.000 [liters]
L10k 0.35 [mH]
n0 0.00 [%]
dBSPL 0.00 [1W/1m]
Ms 0.00 [grams]
Cms 0.00 [mm/N]

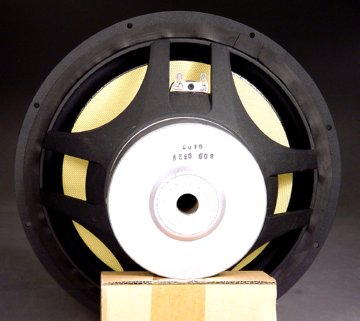

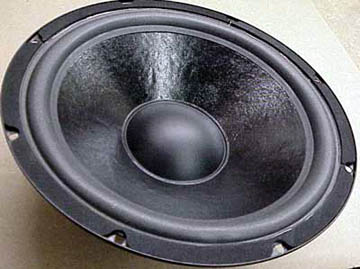

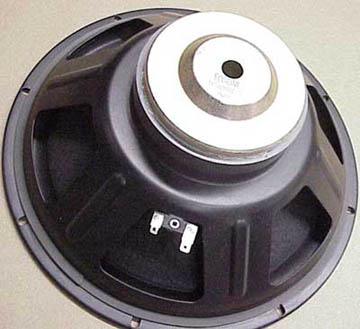

KRK 12" subwoofer from the KRK 12s Studio Subwoofer system $49.95. We recommed an enclosure of 3.5 cubic feet with a round port of 3" by 3.125" long. See the KRK 12s amp page for the matching amp.



D 0.0 [mm]
Re 3.21 [Ohms]
Fs 48.45 [Hz]
Zm 10.09 [Ohms]
BL 0.00 [N/A]
Qms 1.671
Qes 0.781
Qts 0.532
Vas 0.000 [liters]
L10k 0.39 [mH]
n0 0.00 [%]
dBSPL 0.00 [1W/1m]
Ms 0.00 [grams]
Cms 0.00 [mm/N]

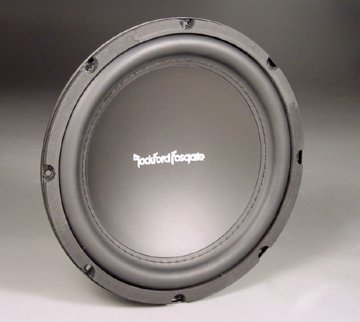

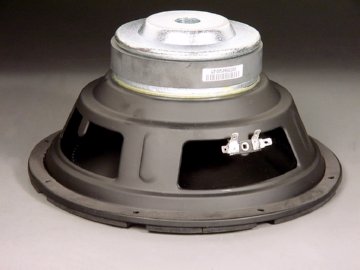

10" Rockford Fosgate 2 Ohm Sub-Woofer

$29.95ea 2 for $55.00


Parameter Value Unit/Notes
Effective piston area (Sd) 339.7 cm2
Free air resonance (Fs) 43.3 Hz
DC resistance (Re) 0.324 O
Mechanical Q factor (Qms) 4.903
Electrical Q factor (Qes) 0.784
Total Q factor (Qts) 0.676
Voice coil inductance (Le) 0.1 mH/milli-Henrys
Equivalent air volume (Vas) 19.607 Liters
Moving mass (Mms) 111.8 Grams/Mmd + air load mass
Suspension compliance (Cms) 121.00 µM/N/micro-Meters per Newton
Force factor (Bl) 3.543 Tm/Tesla-Meters
Sensitivity (SPLref) 85.0 dB/reference 8O/2.83Vrms

This driver was used in the Rockford Fosgate R300-10 car subwoofer. You can still find them for sale if you do a search. The system used a 1.3 cubic foot sealed enclosure with a 300 watt RMS amplifier. Reviews are very positive for this unit. This is a great sub for people who need some extra bass in the car, but don't have a lot of space for a big box.

Here is a link to the Owner's Manual

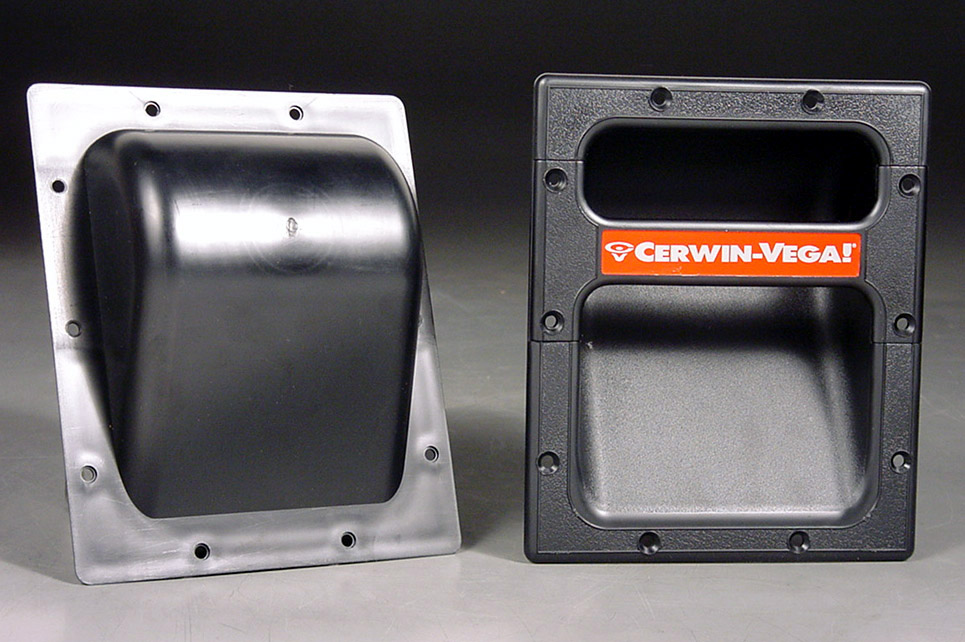

Cerwin Vega Speaker handles Penn-Elcom part # H 1024
6 17/32" Wide X 8 7/32" Tall X 2 3/32" Deep $5.00 pair.

While these were designed for professional loud speaker cainets, they can be used for almost any kind of cabinet that need a solid pair of handles.

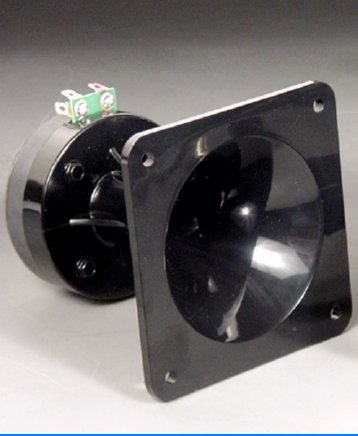

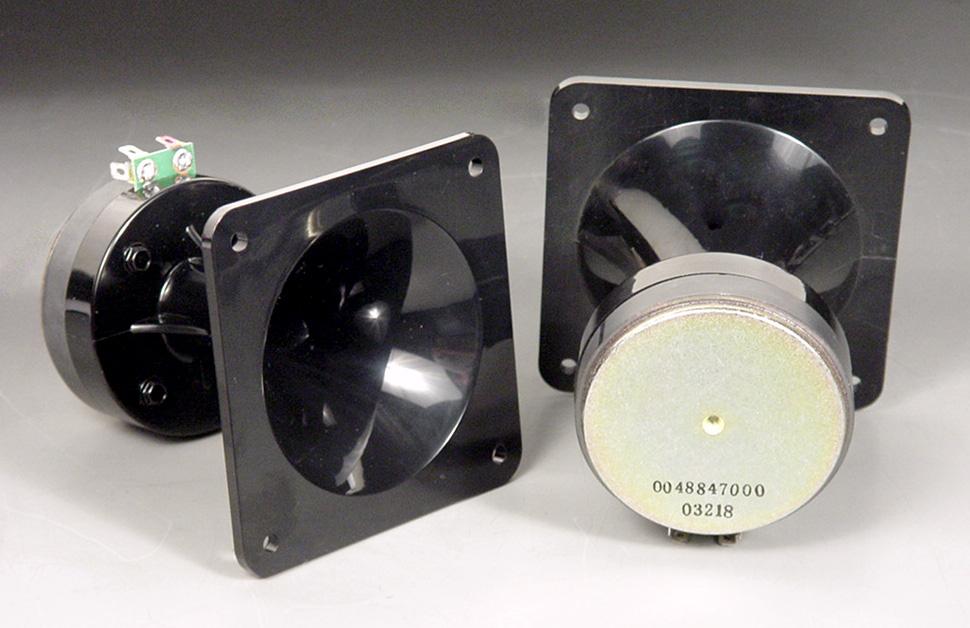

P/N 004884700 8 Ohm compression Horn Tweeter at $9.95ea

( 4.5" FOSTER Horn Great for Fender Bassman, Roland, SWR Replacement)
Great for Home Audio and PA Box building projects too. 8 OHM
End to end measurements is 4.5"
Measures 5" diagonally from hole to hole
Side to side hole 3.5"

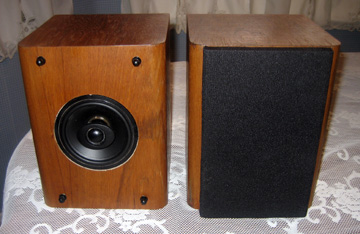

Vifa Coaxial

These drivers were purchased from M & K at the liquidation

auction. They were use in the MP6 speaker system.


Check out the M & K Vifa Coaxial Project Page


-2 ways coxial drive unit
-3/4" silk cone tweeter & 4" NRSC coated paper cone woofer, Rubber surround, Fiber reinforced polymer chassis
-Seperated Neodyninum Magnetic system
-Coxial drive unit, No acoustics phase distortion
-Best use for Bookshelf, Home Theater , Surround speaker

Specification:
-Sensitivity: 87dB (2.83V/1m)
-Nominal Impedance: 8 Ohm
-Normal Power handling: 50W
-120mm diameter , Height: 89mm

Suggested cabinet/crossover design:
-4 Litre internal volume, Reflect port enclosure
-Port tube : 30mm diameter, 60mm length
-87dB (2.83V/1M)
-Frequency Response : 80-20KHz (+-1.5dB)
-Norminal Imepedance : 8 ohm
-Max Power Handling: 50W (RMS

Price $14.95 each

Case lots of 28 --- $350.00

suggested crossover schematic

Suggested cabinet volume .14ft3 ported.

port = 1.25" diameter x 2.375


Here is a project by Bret Roberts

Here is a boombox project by Bryan Keane
I

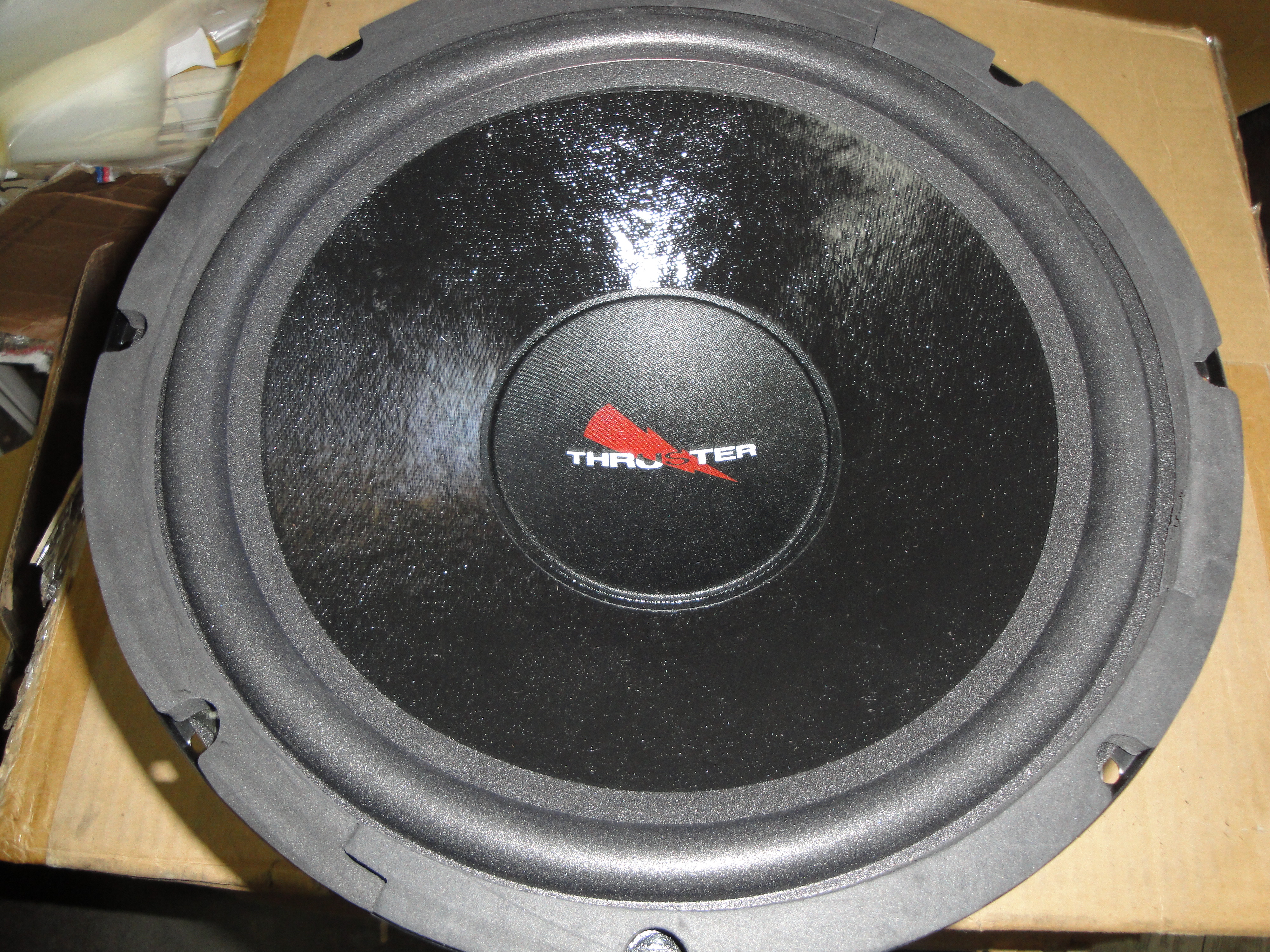

 12" Subwoofer
THRUSTER Series II Model THW 1260



4 Ohms 200 Watt RMS
2" Voice Coil 50 Oz Magnet

Recommended Box Size Box Size Ported 2.2 Cu ft
2 Ports 2 3/4"Dia X 2 1/4" Long


Fs 30Hz
Freq Res 25Hz-2K Hz Box Size Sealed 0.7 Cu Ft
SPL 90Db
QTS .21
VAS 395L

PRICE 39.95 each





4" -10MM P/N 826-366-31 $ 3.95 ea

See link below to see what these are being sold for elsewhere

Parameter Value Unit/Notes
Effective piston area (Sd) 49.49 cm2
Free air resonance (Fs) 132.1 Hz
DC resistance (Re) 21.8 O
Mechanical Q factor (Qms) 4.551
Electrical Q factor (Qes) 1.512
Total Q factor (Qts) 1.135
Voice coil inductance (Le) 1.1 mH/milli-Henrys
Equivalent air volume (Vas) .94 Liters
Moving mass (Mms) 5.3 Grams/Mmd + air load mass
Suspension compliance (Cms) 274.17 µM/N/micro-Meters per Newton
Force factor (Bl) 7.968 Tm/Tesla-Meters
Sensitivity (SPLref) 83.4 dB/reference 8O/2.83Vrms

Six can be used in parallel for a 4 ohm load. Frequency response 300 Hz to 8 kHz, +/- 3 dB. Can be used as a dipole or in a sealed enclosure .14 cubic feet

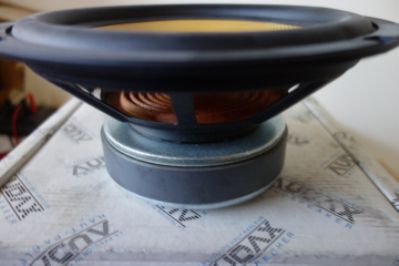

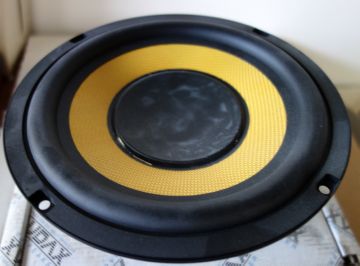

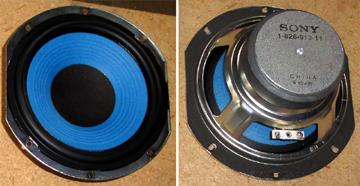

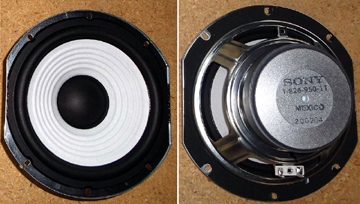

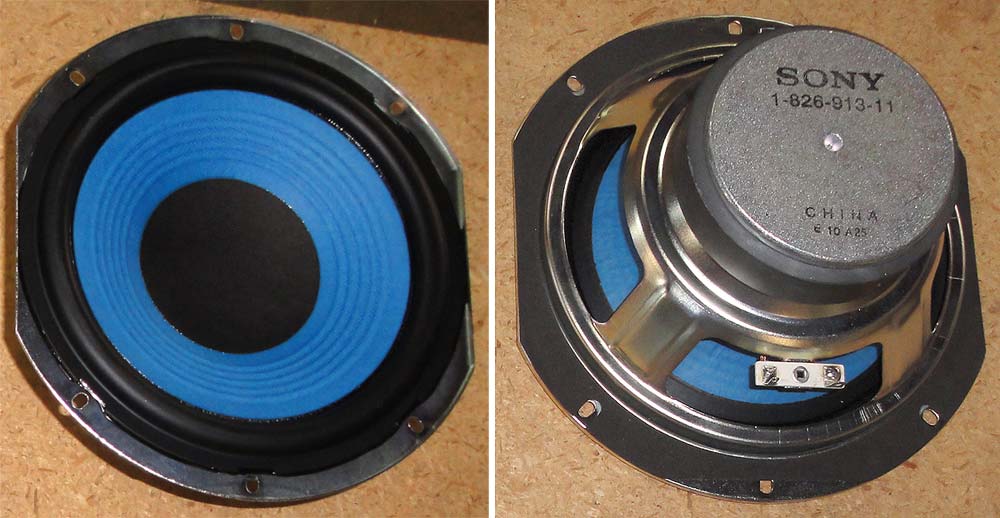

8" -20MM woofer P/N 826-913-11 $17.99 ea

Fs 83.19, Vas 6.24 L, Qts 1.19, 85.85 dB, 8 ohm. This speaker could be used as IB (infinite baffle) using the trunk of a car as the enclosure. Suitable to be used as a dipole. Could be used in a sealed enclosure .75 cubic feet or larger.





10" - P/N 858-252-11 $27.99 ea

Fs 63.48 Hz, 12.54 L, Qts 1.0, 85.83 dB, 8 ohm. This speaker could be used as IB (infinite baffle) using the trunk of a car as the enclosure. Suitable to be used as a dipole. Also it could be put in an enclosure 1.45 cubic foot, tuned to 37.8 Hz. This would be a 4" tube, 10" long.







Cervin Vega 6" Midbass Driver $6.00ea.

Specs:

*FS=95Hz

*Qts=.61

*Qes=.77

*Qms=3.05

*Vas=10.5 liters/.373 cf

*Re=5.7 ohms

*Rm=28.7 ohms

*Le=.295mH

*BL=5.42 Tesla meters

*SPL=92dB @1W/1m

Designed for a 1.4ft3 vented enclosure. Vent 3" x 1.1". Fb=64Hz. (this is for a SC4 & C4 alignment)

High Qts will also allow this driver to be used in an IB configuration.















Atlas APF-15T's Flange Mount PA Loudspeaker

Retail Price $97.00 our price $19.95ea.

These are New Old Stock

Specs

To get 8 ohms cut the Black and Yellow wire and
splice them to the Black and Yellow on the output terminals

Wiring Diagram and suggested usage.

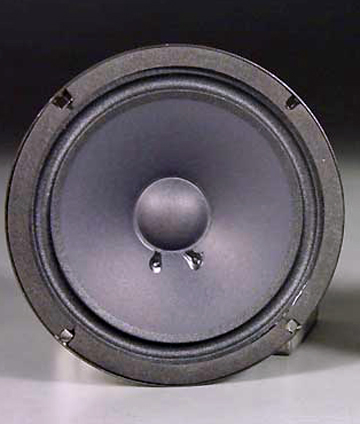

Cerwin-Vega 6" 16 ohm Woofer Good for MTM System $5.00ea.

Fs 58.48, Vas 20.05 l, Qts 0.8872, Qes 1.1012, Qms 4.5655, Re 14.88 ohms, Rm 0.739 ohms, Le 0.2540 mH, Spl 87.45 dB @ 1W/1M, cone area 0.0133m^2

















Check out this DIY Super Tweeter link in enjoythemusic.com

Shielded Soft Dome Tweeter $14.95 a pair

Fs 1473Hz
Qms 1.54
Qes 2.00
Qts 0.87

4 ohm nominal impedence

4" Round - 2 3/4" Magnet and 1 1/8" Deep

Recommended Crossover 2-3KHz 2nd order electrical or higher See graphs

Customer Comment

"This tweeter measures very well and is by far the most dynamic non-horn-loaded tweeter that I have encountered thus far with whopping 96db@1m/2.83v senitivity coupled with excellent power handling and best used with a 3Khz crossover." Steve Sedmak

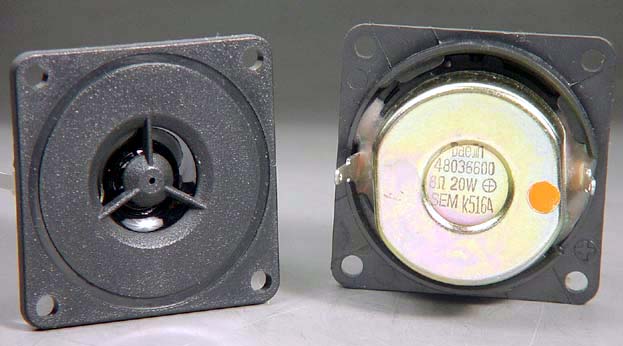

8 ohm 20W Polycarbonate Tweeter $0.89 each

Impedence curve courtesy of Dave Dulgos http://www.planet10-hifi.com/





CERWIN VEGA VISION 253 Pro Audio Crossovers $49.95 Pair

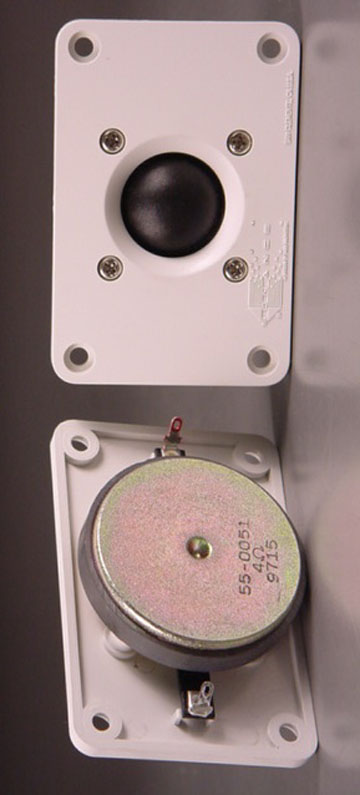

Apex Jr Tweeter - $1.00 each, or 100 for $85.00

See http://www.aespeakers.com/pics/mini-line/proto1.jpg for a John Janowitz design using this tweeter.

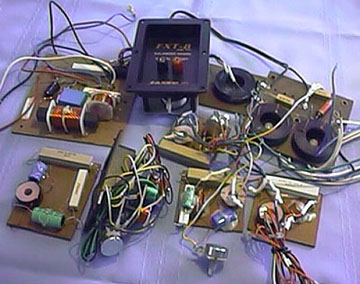

Bag O'Crossovers-assorted crosovers

$20.00

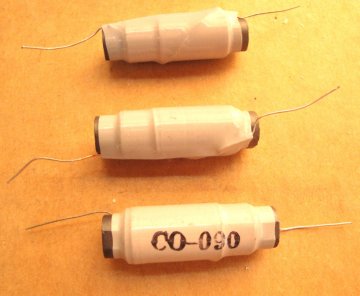

.9mH ferrite core speaker inductor $1.00 each

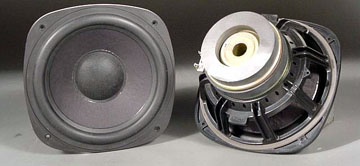

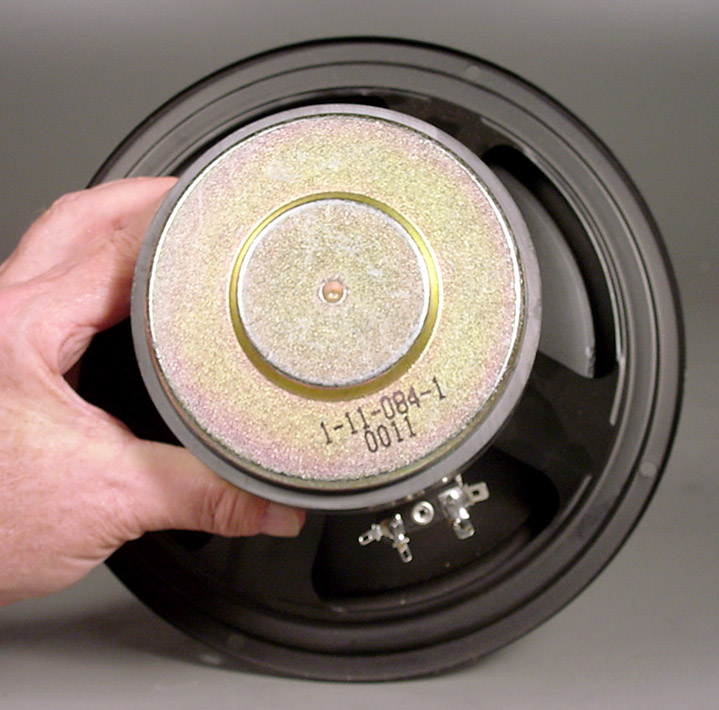

Klipsch 8" Shielded Speaker $37.00

Vas 29.46 L, Fs 45.7406, Qts 0.4644, Qes 0.5429, Qms 3.2134, Re 2.99, Le 0.5439mH, 89.98 dB 1w/1m, BL 6.23 Tesla Meters

Box Parameters:

Vented Box 1.6ft3 Vent= 2" dia x 7" long Fb=40Hz

Vented Box 1.00ft3 Vent =2" dia x 2.6" long Fb=46Hz

Sealed Box .8ft3 Fb=70hz
