Transformers



Manufacturer

Description

Price Each






HTA 2000

28/32 vct OEM Transformer for the Dual 25 amps

$9.95

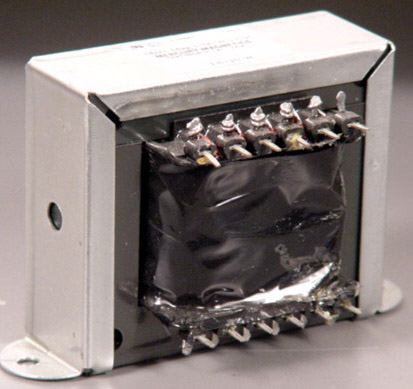

Mercury Magnetics TA110-W

3" X 2 5/8" w/ mounting ears, 115Vac input with voltage taps of 48V, 40V, 24V and 8V, 1 amp estimate

(pictured below) data sheet

$3.95












  Thordarson 23V102 115V input 50/60cy Output 2 X 36V at 3A $20.00 ea




Magnatek/Triad F259/U

115V input 20Vct 10A

$20.00ea

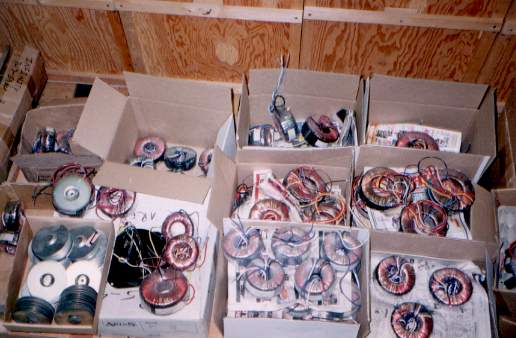

* The three torids in the picture are special purchase items and are listed below in red.

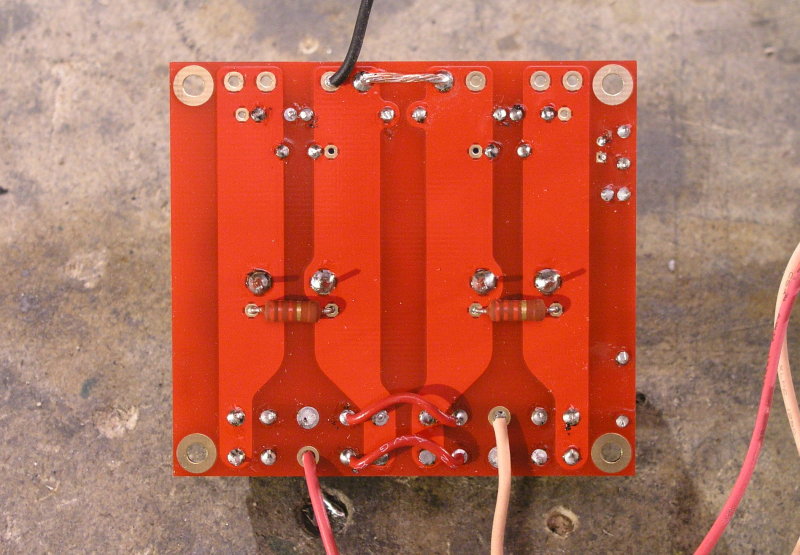

Hookup of these toroids for the Brian GT Chip Amp Boards..

Thanks to Xiphmont (aka) Monty for the photos

Toroids



Part #

Breaker

Primary

Secondary

Price

  Amveco Magnetics   120v 50/60 hz 216VA image 22Vct no load 2X 10.2V at 9.5A $19.95


















160Va

Dual 24 Volts

$22.00ea















Amveco Magnetics



100V-110V-120V input

 120V 3.5Amp, 21V 19Amp
8.5V 10.5Amp, 37V 3Amp and 12V .2Amp

$45.00ea















Avel-Lindberg Inc

 *

Input: 2 X 120Vac 50-60 Hz
3 3/4" Dia X 1 1/2" Tall
specs

Output: 2 X 28.4V @ 2.67Amps over 150Va

$22.00ea















Keen-Ocean





162Vct 6A, 17V .2A, 24Vct .25A

$29.95ea















Amveco





13.6V 300Va

$25.00ea


  Vantas model # 600239     2X 35V 600Va $39.95

WIRING CONNECTIONS FOR THE TOROIDS ABOVE IN RED

2 X 28.4V... For 115Vac Input - Tie the 2 blacks and Brown together along with
Tying the 2 Whites and Blue together
OUTPUT- Black is the center tap and each side Red and Yellow

2 X 25V... For 115Vac Input - Tie the 2 Greys and brown together along with
Tying the 2 Violets and Blue together

OUTPUT- Black is the center tap and each side Red and Orange


42Vct...... For 115Vac Input- Tie the 2 Blacks and brown together along withTying the 2 Whites and Blue together

OUTPUT- The leftover 3 wires

All toroids have 120V primaries except those with the * which are 220V. These transformers are were used in the Definitive Technology, Infinity, and Aurtum amps.







Resistors

Value

Power Rating

Description

Price Each


.1 Ohm

300 W

1 1/4 x 8 1/2 Round

$3.95

.22 ohm

3 W

wire wound

$.20 ea $15.00/100

1.5 Ohm

10 W

Axial Sandstone

$0.15

2 Ohm

10 W

Axial Sandstone

$0.15

3.3 Ohm

10 W

Axial Sandstone

$0.15

6.8 Ohm

10 W

Axial Sandstone

$0.10

25 Ohm

15 W

Axial Sandstone

$.15 ea $10.00/100

50 Ohm

50W

Ohmite

$1.00

100 Ohm

5 W

Wirewound Silicone

$0.40

100 Ohm

200W

Clarostat

$3.50

150 Ohm

10 W

Wirewound Silicone

$1.00

300 Ohm

10 W

Axial Wirewound Silicone

$1.00

500 Ohm

10 W

Wirewound Silicone

$1.00

1K Ohm

9 W

Tel Labs RS type Silicone WW

$0.75

1K Ohm

10 W

Axial Wirewound Silicone

$1.00

1.2K Ohm

10 W

Axial Sandstone

$0.15

2K Ohm

10 W

Axial Wirewound Silicone

$1.00

7.5K Ohm

225 W

Ohmite

$3.95

4KOhm

10 W

Axial Sandstone

$0.15

200 Meg Ohm

1 W

IRC MVX 1

$0.50

Resistors -Carbon Comp

Value

Power Rating

Price Each

Allen-Bradley,IRC,Airco Speer and other carbon composition resistors also available
in both comercial and Mil-Spec values


15 Ohm

2 Watt

$1.00ea

68 Ohm

2 Watt

$1.00ea

150 Ohm

2 Watt

$1.00ea

470 Ohm

2 Watt

$1.00ea

1 Kohm

2 Watt

$1.00ea

270 Ohm

1 Watt

$0.50ea

330 Ohm

1 Watt

$0.50ea

680 Ohm

1 Watt

$0.50ea

22 K Ohm

1 Watt

$0.50ea



large quanity available




Many other values available all wattages 1/8-1/4-1/2-1-2W. Please call,fax or email us with your requirements

Fans

5V 1 1/2" square fans 12V DC 1 1/2" square at $2.00ea

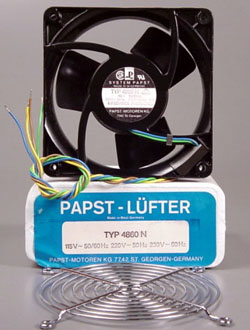

Papst Fan 4 wire 115V/230V metal fan at $8.95ea Fan Guard .79ea

Papst Fan 8-16V Model # 8112G 8Vdc (1.5W)--- 16Vdc (6.5W) 5 blade and all metal 3 1/8" X 3 1/8" X 1 1/2" $9.95ea

PAPST made in Germany 3" X 3" X 1 1/2" Metal Fan model 8800N $9.95ea







Cable Ties/Ty-Raps Locking

Length

Color

Price per 100

Price per 1,000


4"

Natural

$2.00

$10.00

5 1/2"

Natural

$2.50

$15.00

7 1/2"

Natural

$3.00

$20.00

8"

Black

$2.75

$17.50

11.5" HD

Natural

$6.00

$50.00

36"

Natural

4 for $1.00




Other Items

Description

Price Each


AGC/3AG   Fuses

1/2A, 1A, 2A, 3A, 4A, 5A

$0.10

AGC/3AG   Fuses

1A, 2A,  2.5A, 3A, 4A, 5A(Slo-blo)

$0.20

4.75 mh Choke



$1.50

PXT-8

2 Way, 75 watt  Crossover, 2,000hz, 8 Ohms

$5.00





Terminal Strips



A.Six Section $0.40 ea

B.Five Section $0.40 ea

C. .Six Section $0.40 ea

D. Two Section $0.10 ea

E..Six Section $0.50 ea



We also stock:

  • 1/2 watt, 1 watt, and 2 watt carbon comp resistors.
  • Relays
  • Switches
  • Coax & Coax Connectors
  • Integrated Circuits
  • Tubes
  • Test Equipment
  • Other Electronic Parts
  • Terminal Strips
  • Movie Props and supplies


Call for Availability and Pricing

There are limited quanities for some items. No back orders when stock is depleated. Please call for availability.
